The Create+ 25l Boiler is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser.
With a maximum capacity of 25 litres, the Create+ 25l Boiler is designed for distillers seeking precise control and versatile functionality. It features dual element control switches to provide more control during distillation.

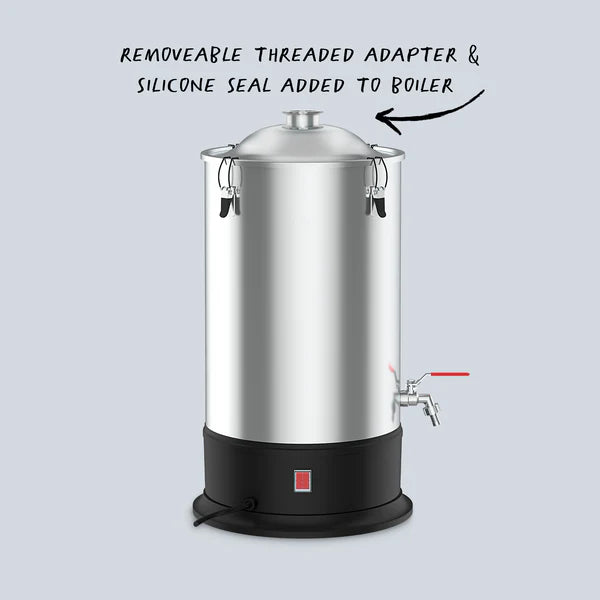

The Create + 25l Boiler comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so you can experiment with different setups and attachments.
Key Features:
- Dual element control switches provide more control during distillation
- When both switches are in the ON position, the element will be supplied full power of 2200W
- When one switch is in the OFF position, it will only consume 1100W
- Designed in New Zealand
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap with a stainless-steel ball valve
- Boiler lid with 48 mm opening
- 25 L Boiler capacity
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
NOTE: The Threaded Adapter is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
A total column & condenser weight up to 11 kg (24 lbs), including uop to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
